Test Item
Used — good
$1.00
1 available — going fast. We do not backorder: this is all we have.
Delivery
- Shipping calculated at checkout by weight and destination
- Local pickup available (Mon–Thurs 10am–6pm)
- 3-day returns from delivery — buyer pays return postage
1600W ATX Gaming Power Supply Fully Modular PSU for Computer PC Case Mining Rig
Description
About this itemFull Modular Design: modular cables make cable management easier, it effectively reduces clutter, increases airflow and improves thermal performance.

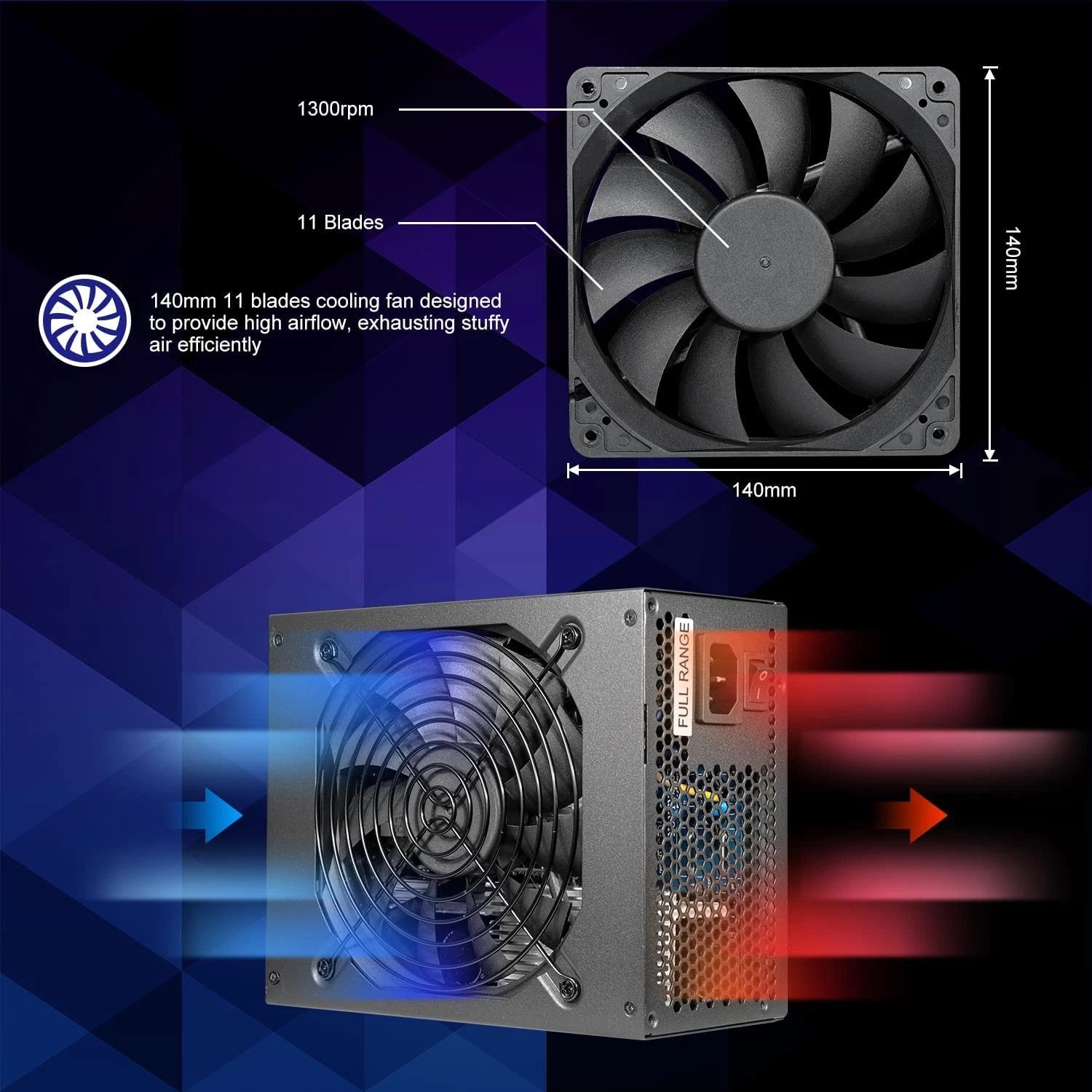

Low Noise Operation: The 140mm fan adopts two 8cm double ball bearing fan convection design, it keeps the fan operate under 800 rotating, virtually silent operation at low or medium loads.

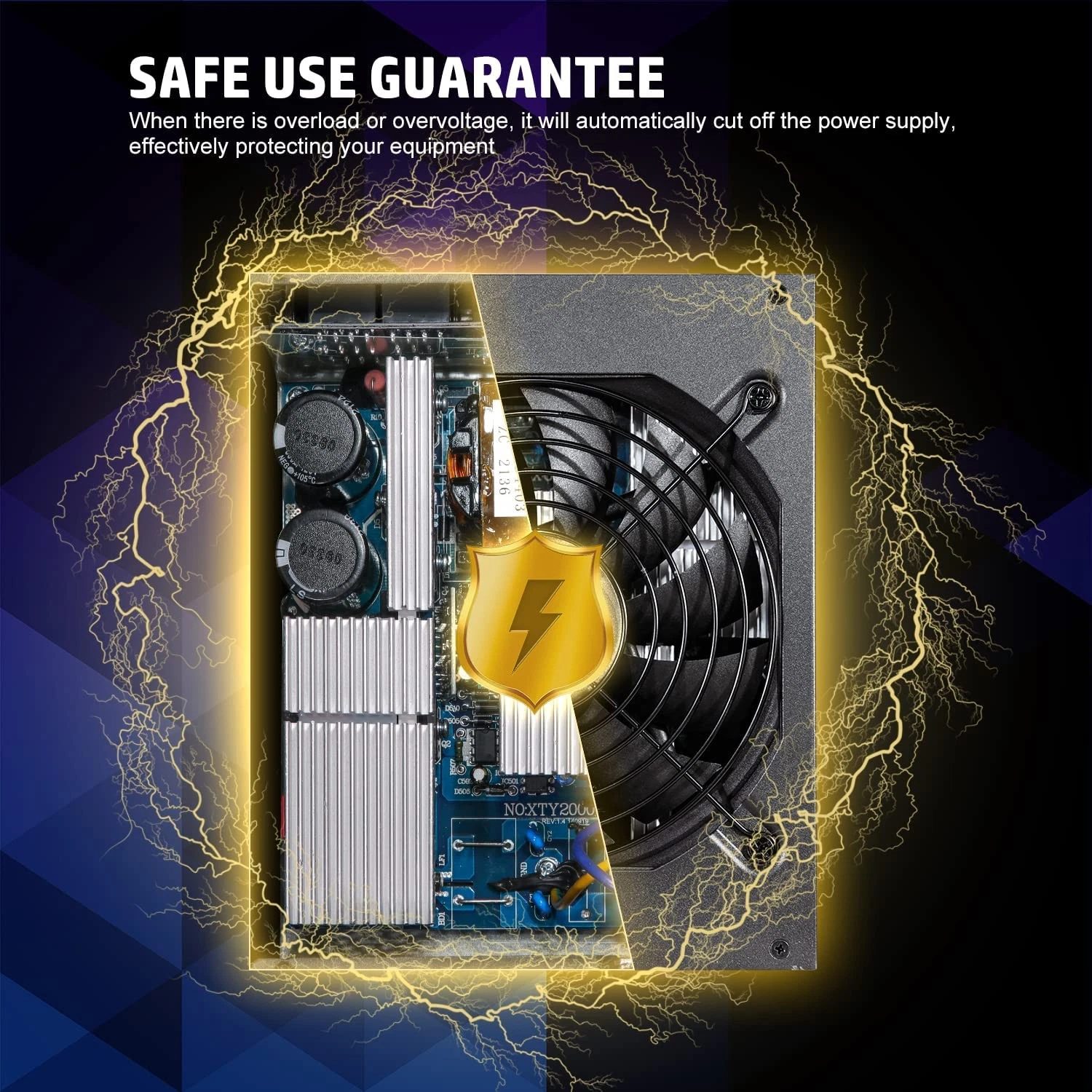

Safety and Reliable: Over current/Voltage/Power/Temperature protection, under voltage protection, and short circuit protection provide max safety to your critical system components.
The power supply has a rated output power of 1600W, which is durable and has a conversion efficiency of up to 87%. It is widely used in various mines and high-power single-circuit 12V industrial equipment.
Reliable Customer Support: We provide 24 hours customer support, you can enjoy peace of mind with our guarantee of reliable operation.
Notice: When the 1600W power supply is special for mining machine, in order to effectively dissipate heat, the fan speed is above 2300 RPM, so the noise is normal. Using a new large-capacity large magnetic ring material, the performance is very stable.
OPEN BOX
Product description
Input Voltage:110V(fit for all ranges of 100~240V)
Model: Fully Modular Support Double 8Pin CPU
Output Type: FULL
PFC Type: Active

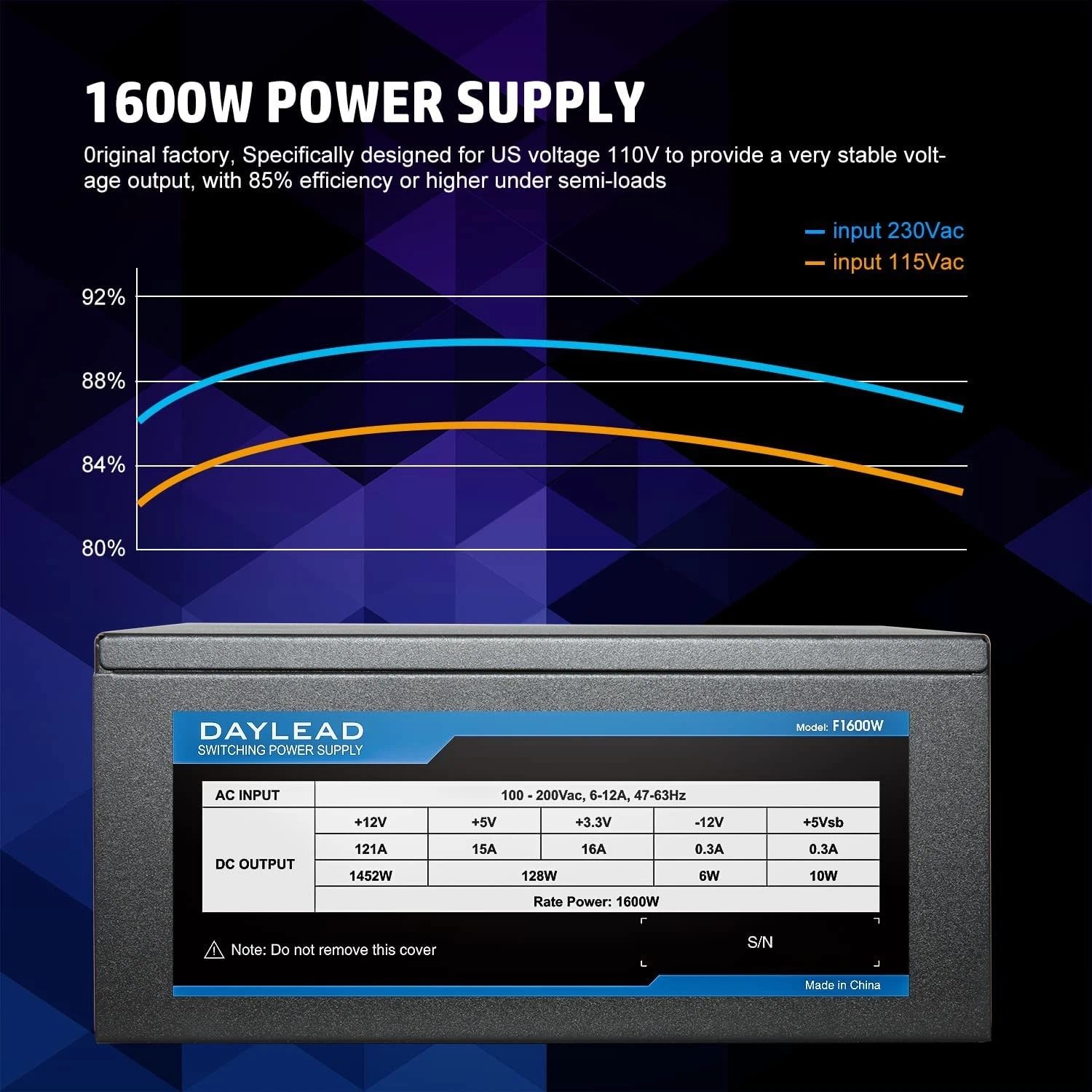

Efficiency: 85% with input 110v / 88% with input 220v
12V Rail: Dual
I/O Switch: Yes
Cooling: 140mm fan + fan

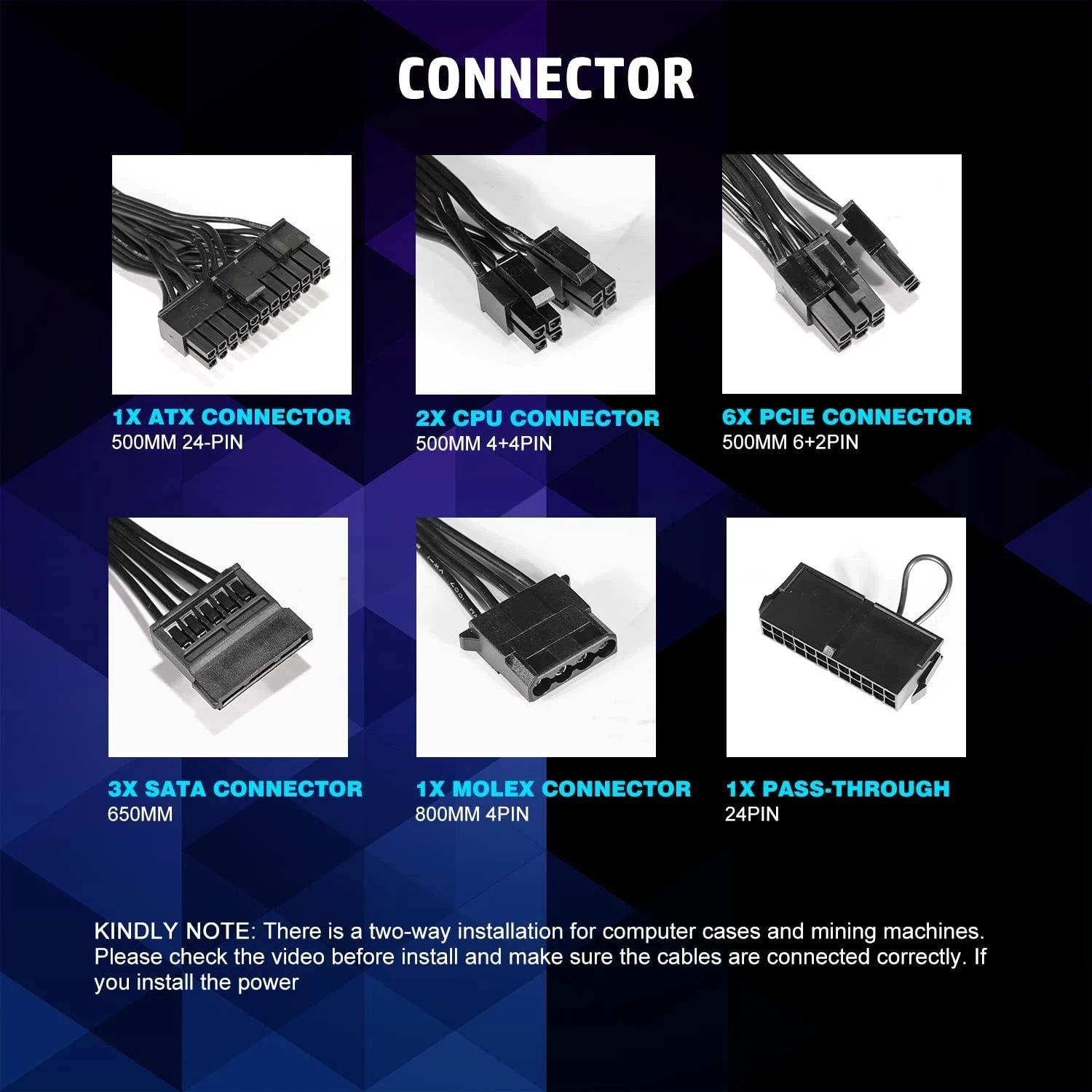

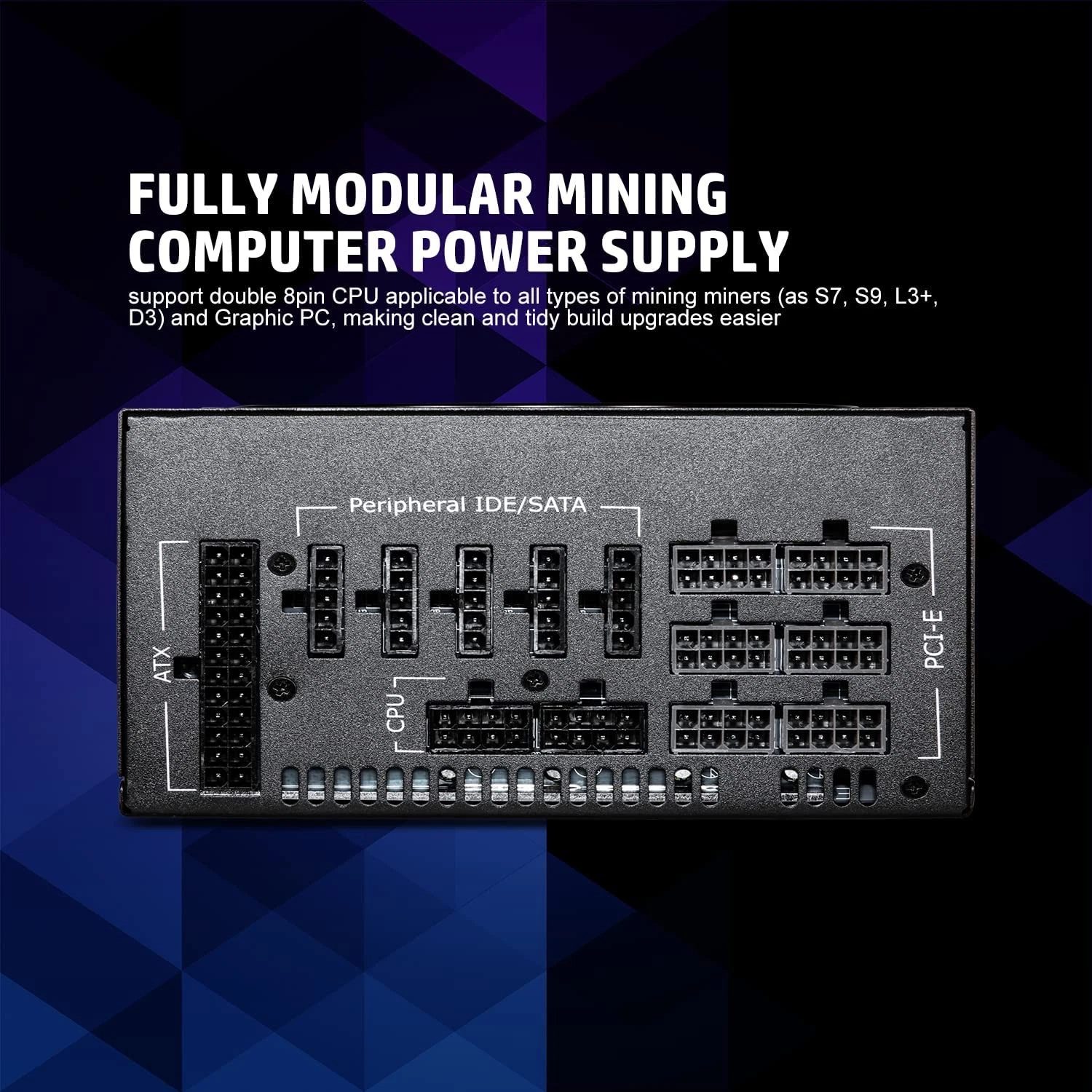

Interface: 1x (20+4)PIN ; 2x (4+4)PIN CPU ; 6x (6+2)PIN PCI-E; 8x 4PIN SATA ; 3x 4PIN IDE
Guard Power cord: Yes

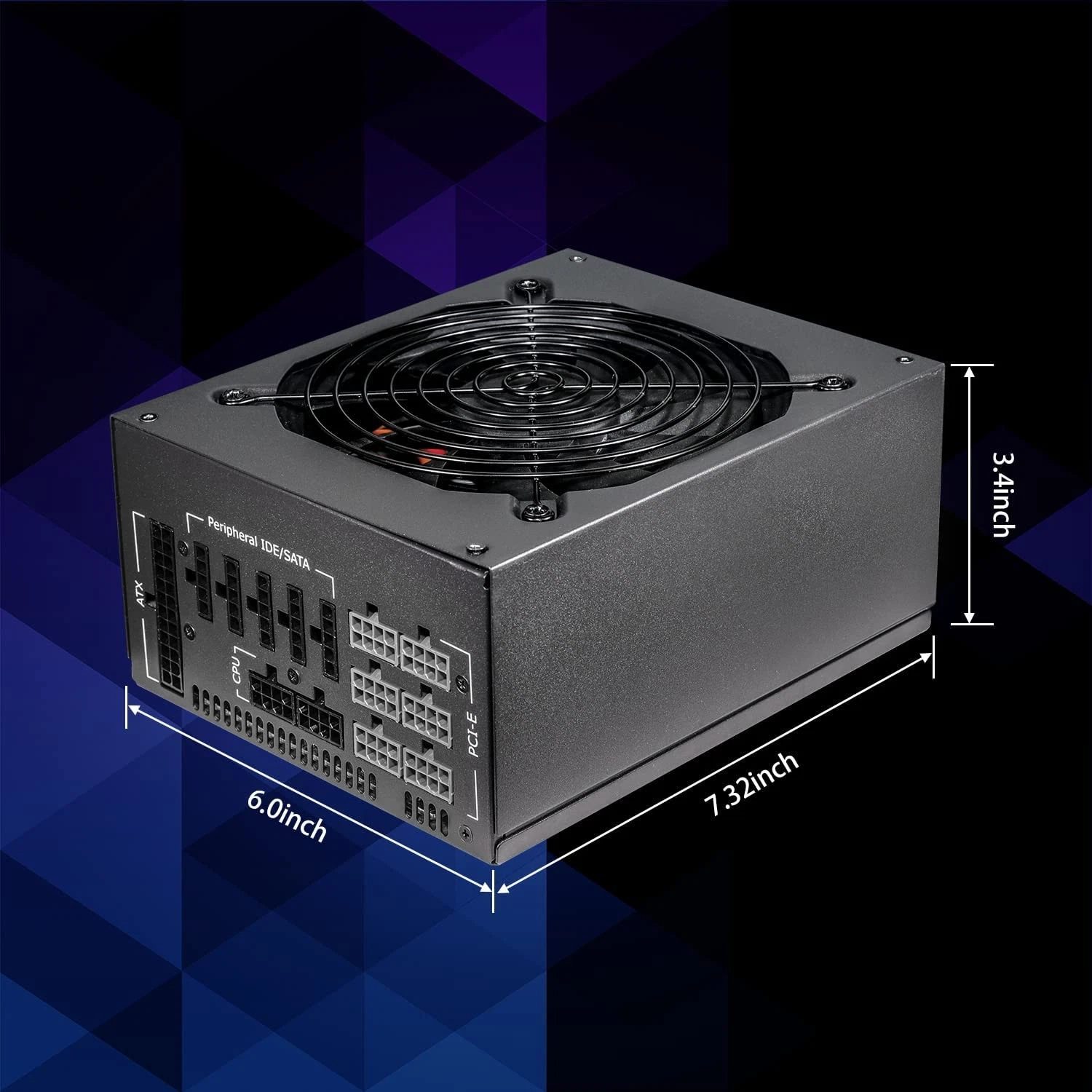

Housing size: ATX 165*150*85MM
Housing material: SGCC
M/B(20+4P): 1(exposed 500MM)
CPU(4P+4P): 2(exposed 500MM)
PCI-E(6+2)P: 6(exposed 500MM)
SATA: 4(exposed 500MM) + 4(exposed 650MM)
Molex 4Pin: 1(exposed 500MM) + 1(exposed 650MM) + 1(exposed 800MM)
Output Current:
(DC Output: + 3.3V): 15A (Combuned Power: ≥125W)
(DC Output: + 5V): 15A (Combuned Power: ≥125W) (DC Output: + 12V): 124A (Combuned Power: ≥1488WW)
(DC Output: + 5VSB): 3.0A (Combuned Power: 10W)
(DC Output: -12V): 0.5A (Combuned Power: 6W)
PS: each PCI-E cable supports up to 250W, ,please notice your GPU power in case of over-current which may lead to inner compoment damaged.
What can you get?
Power supply x1
Accessory pack:
24PIN ATX x1
4+4PIN CPU x2
6+2PIN PCIE x6
SATA x3
MOLEX x1
Power cable x1
Pass-through x1
Strapping x1
Screw x4
Weight: 1.00 lb
